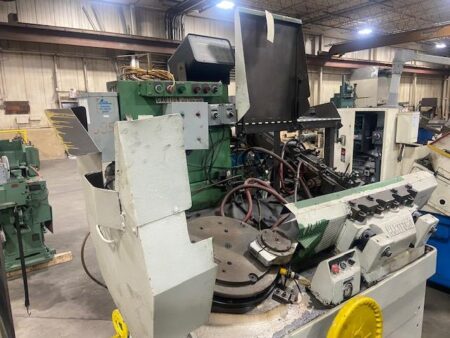

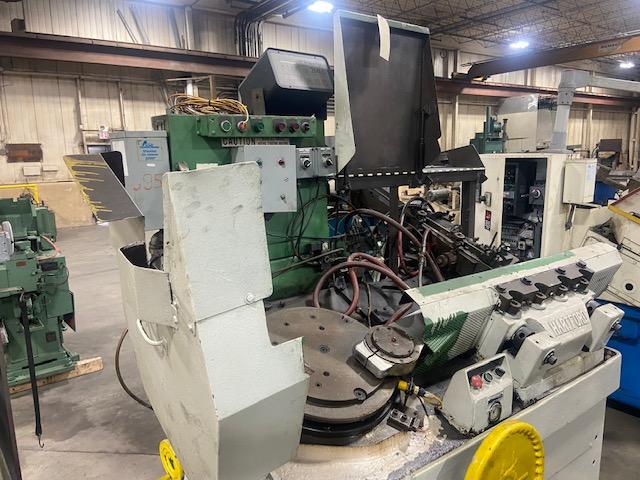

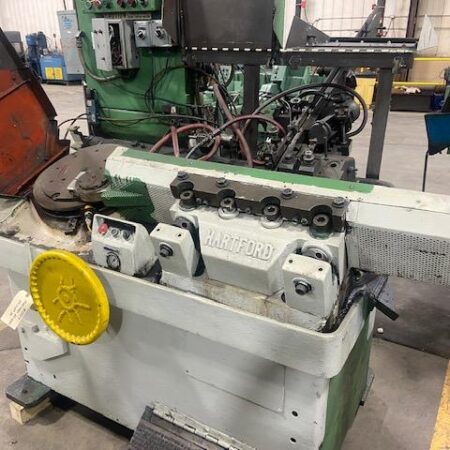

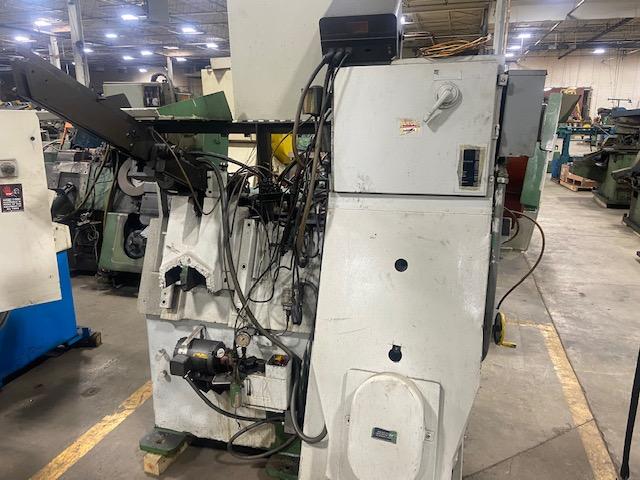

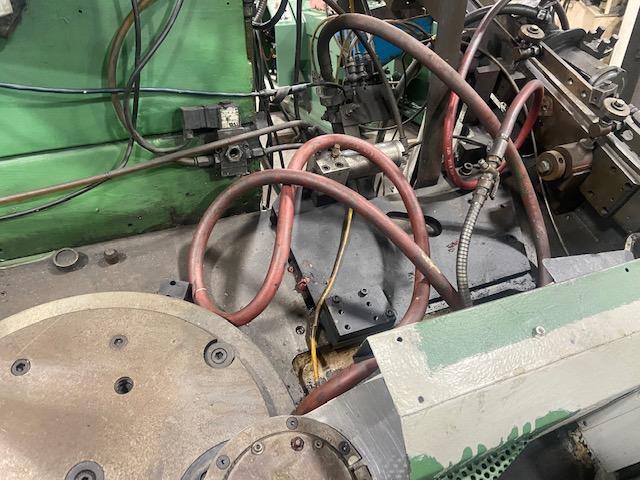

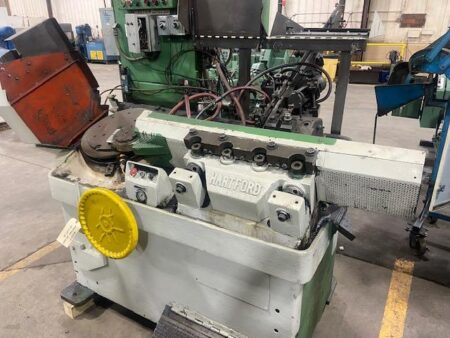

1/2″ x 3″ #20 Hartford 20-225 Automated Flat Die Thread Roller – #16
Screw Diameter Capacity 1/4″ thru 1/2″
Maximum Thread Length 3″
Thread Length at Max. Diameter 1-1/2″
Maximum Shank Length 4″
Production Rate 135 – 225 PPM
Die Pocket Depth 3-1/8″
Flat Die Size Standard #20
Additional information
| Weight | 6500 lbs |
|---|---|
| Dimensions | 72 × 90 × 60 in |
