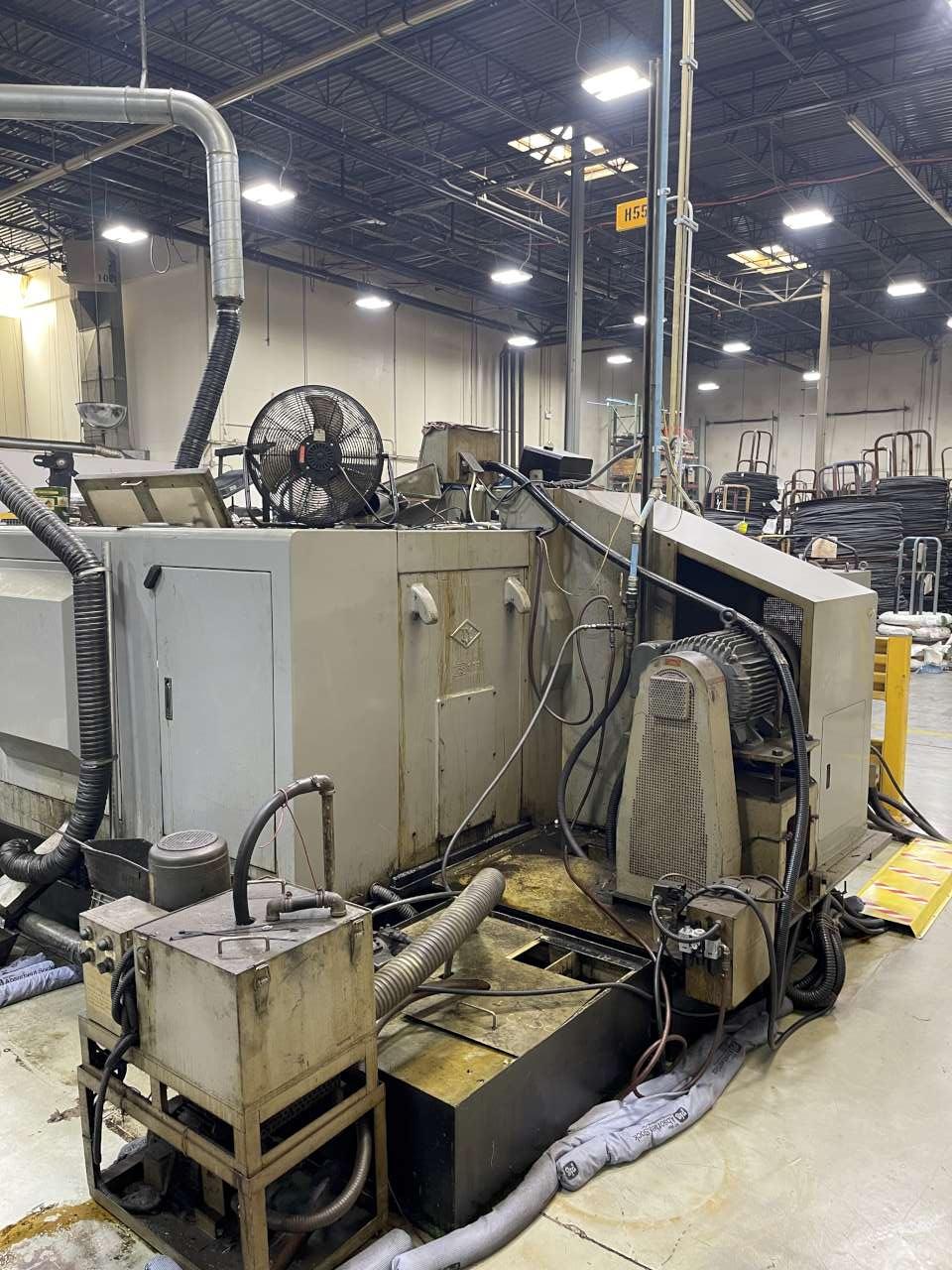

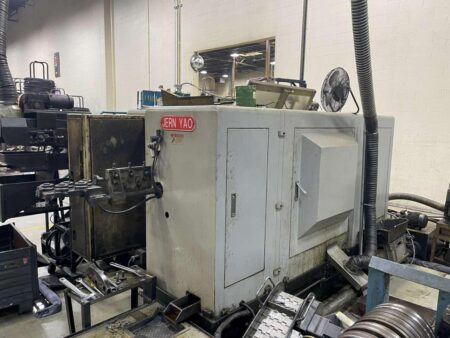

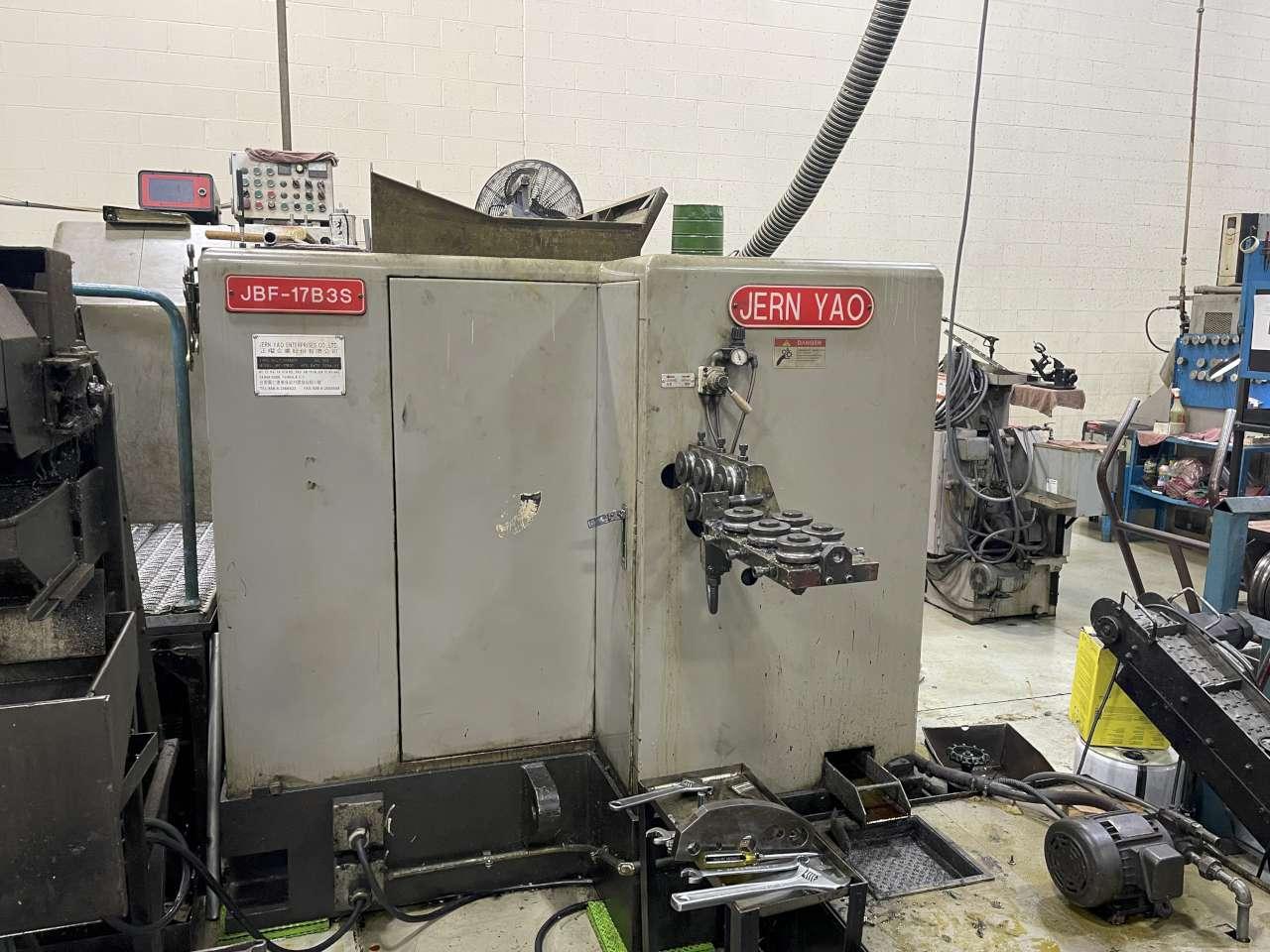

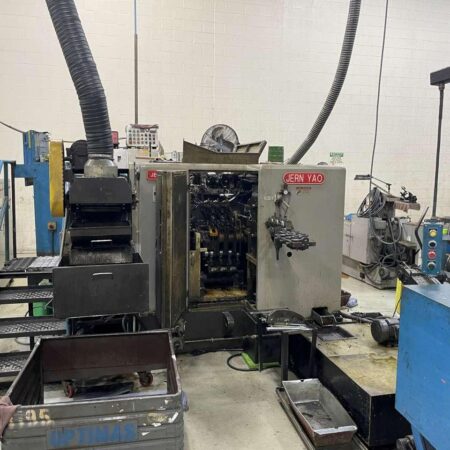

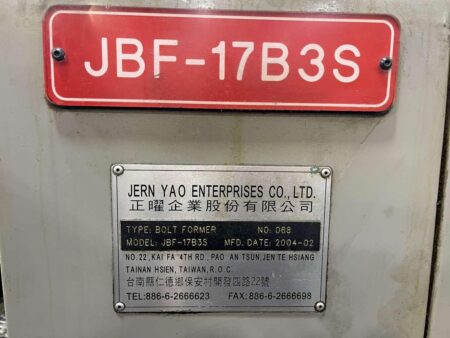

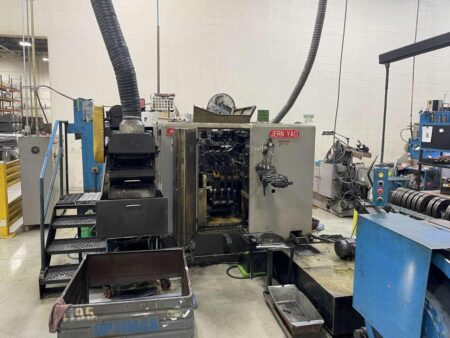

3/8″ M10 Jern Yao JBF-17B3S Bolt Former

CUT-OFF DIA. MAX (mm) 12
CUT-OFF LENGTH (mm) 28~105
KICK-OUT LENGTH MAX. (mm) 90
P.K.O. LENGTH MAX. (mm) 20
CUT-OFF QUILL (DxL) (mm) 40×66
MAIN DIE HOLE (DxL) (mm) 70×95
DIES PITCH (mm) 93
PUNCH HOLE (DxL) (mm) 50×103
RAM STROKE (mm) 160
FORGING POWER (ton) 70
PRODUCTS SIZE 3/8 (M10)
MAX. L (mm) 75
MIN. L (mm) HEX. 16 SOCKET 20
OPEN UPSET DIA. (mm) 21
MAX. OUTPUT (pcs/minute) 210
MAIN MOTOR (hp) 20
APPROX. WT. (ton) 14
