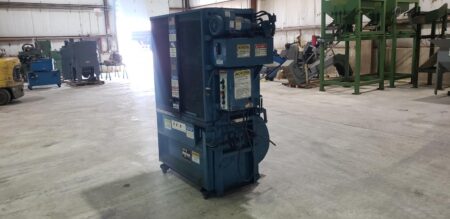

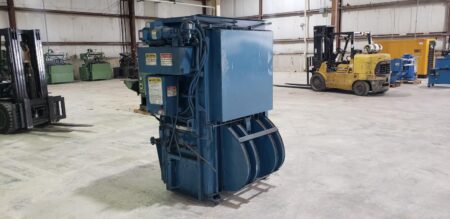

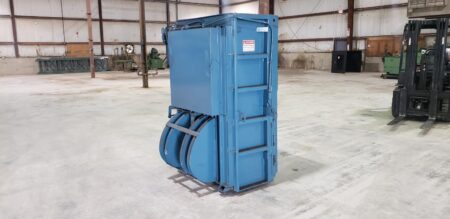

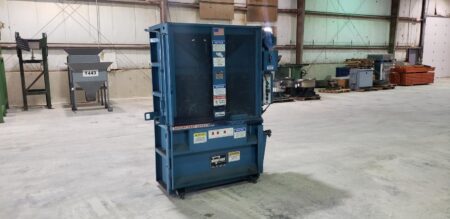

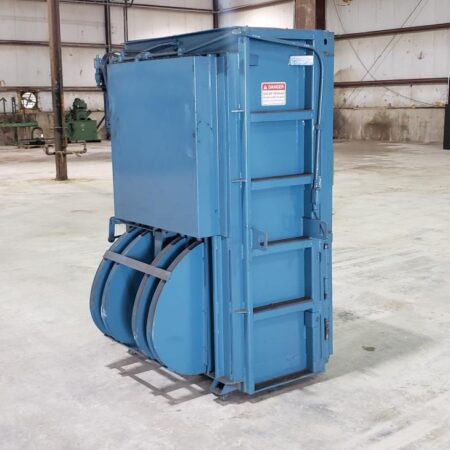

Marathon Vertical Baler V-4224
Model V-4224 Stockroom Baler Bale
Chamber (HxD) 28″ x 24″
Loading Opening (WxH) 42″ x 20″
Penetration 12″
Cycle Time (empty) 40sec
Platen Force 23,750lbs
Electrical Motor 1.5HP
Electrical Control Voltage 115VAC
Hydraulic Pump Capacity 4.4 gpm
System Pressure 2,000psi
Two Hydraulic Cylinders 3″ bore
Cylinder Stroke 25″
Bale Size Width 42″ Depth 24″ Height 28″
Weight 200-400lbs
Machine Weight 1,800lbs
Bale Feed Fates opens automatically at end of each cycle for hands free loading
Compact size allows it to easily fit into existing stock rooms
UL Listed Motor

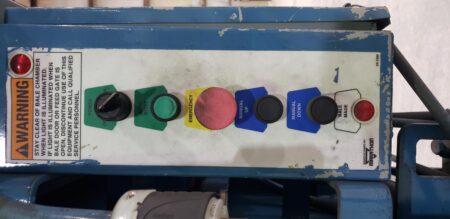

Control Panel – NEMA Type 1
Automatic Bale Ejector for quick and easy turn around time
4 Swivel casters to allow it to be rolled around
Power unit is compact and efficient featuring an energy efficient multi-stage pump and 9gal hydraulic reservoir
Additional information
Weight | 1800 lbs |
---|---|
Dimensions | 60 × 36 × 78 in |
