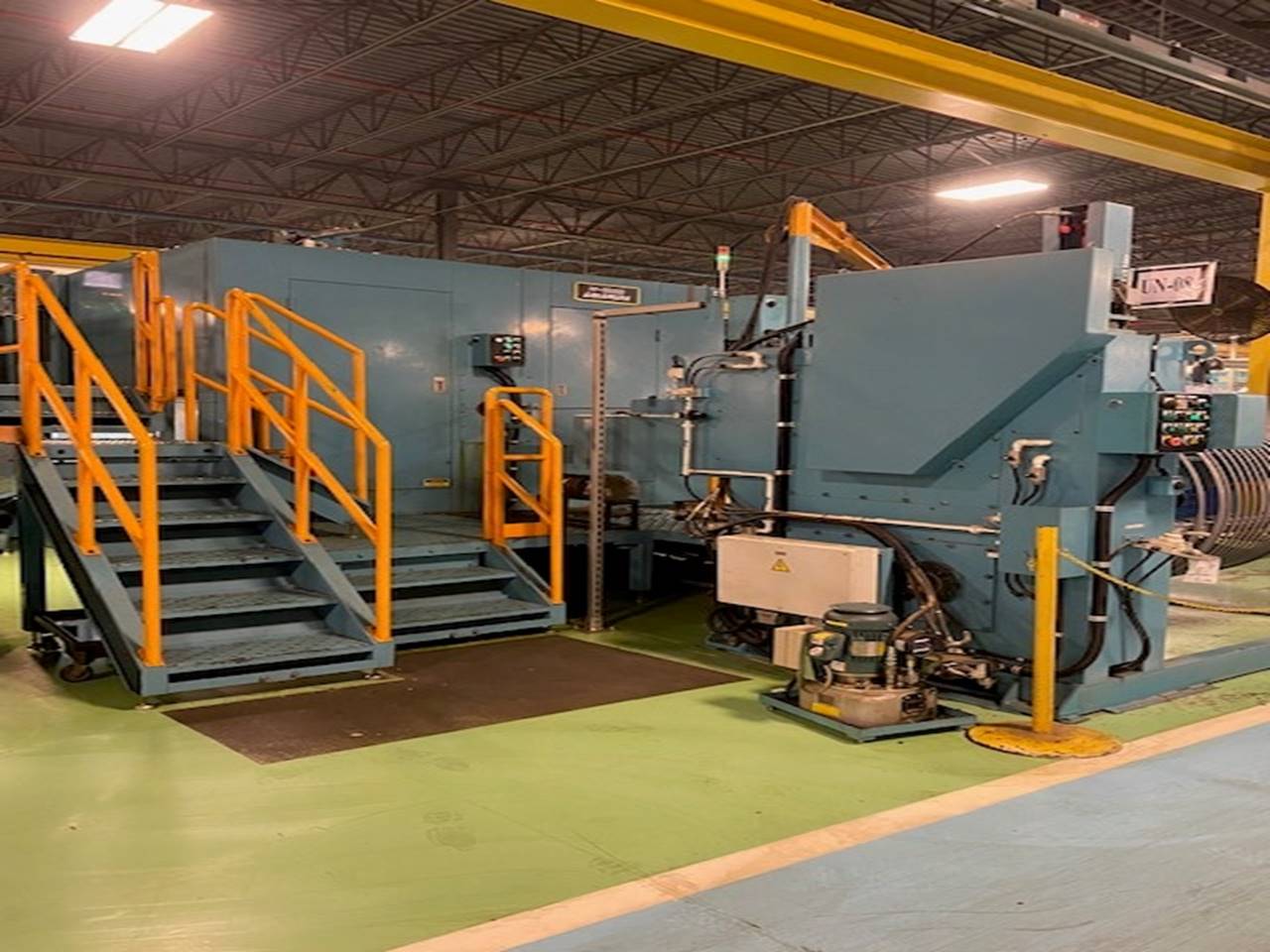

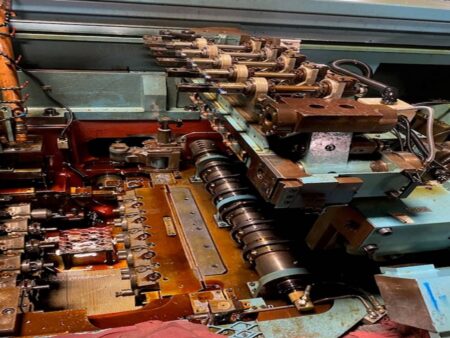

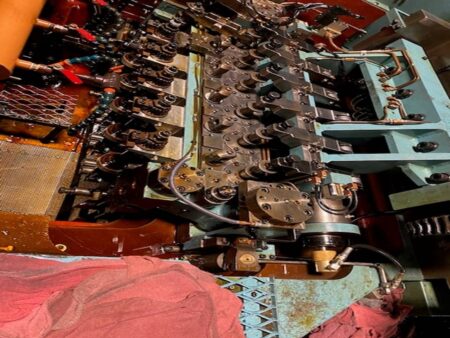

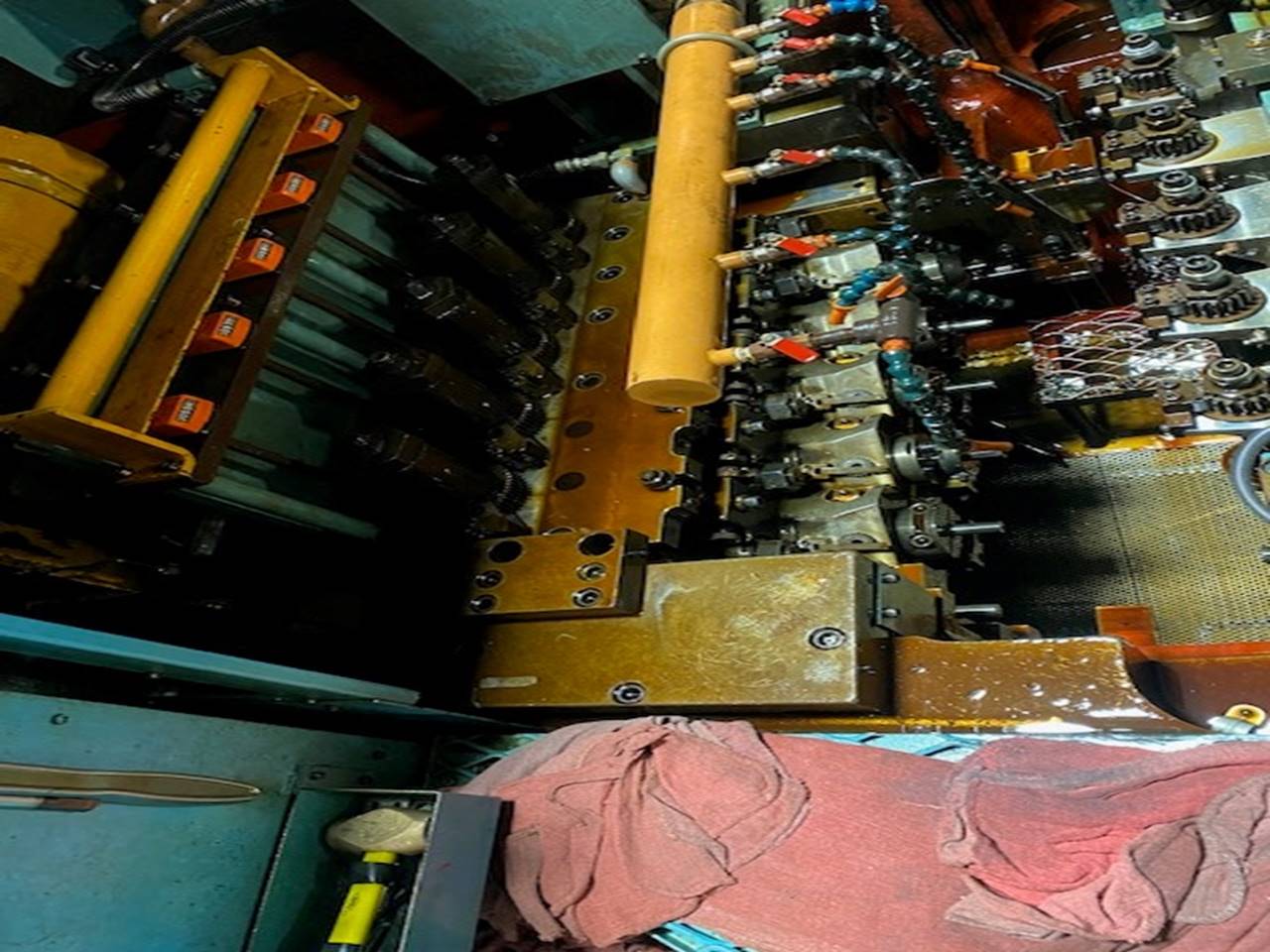

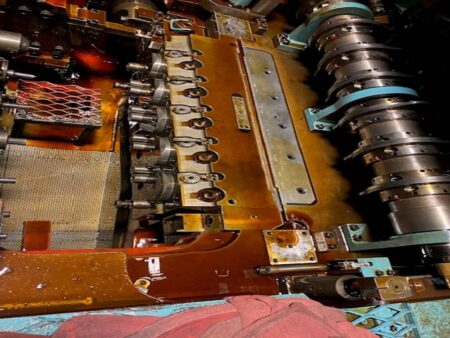

Sakamura PF-550SS 5 Die 5 Blow Nut Former

Heading Steps/Stages – 5 Stage (cut-off, pusher process excluded)
Clutch Type – Sakamura-type combination clutch
Chuck (Clamp) Clear Diameter – 40mm

Cut-off Line Diameter (Max.)
27mm (material tensile strength ≤ 500N/mm2)
24mm ( ≤ 650N/mm2)

Cut-off Method – Round piece cutter, equipped with pusher device
Cut-off Length – 10 – 88mm
Production Volume – 75 – 110 rpm/min, inverter transmission, slow adjustment-type
Knife Piece Dimensions – 80 x 32mm
Quill Dimensions – 75 x 100mm
Punch Dimensions – 90 x 233mm
Die Dimensions – 120.65 x 220
Die Core – 138mm
Front End Positions – 70mm
Ram Stroke Amount – 270mm
K.O. Amount – 5 – 95mm

P.K.O Amount – 30mm (actual: 37mm) L3C
#1 & #2 = shared, #3 & #4 = shared, #5 = independent

Main Motor Horse Power – 75kw, 6p, 208V, 60Hz
Inverter Control – 90kw
Power Supply Capacity – 140KVA
Equipment Weight – 60,000kg
Nominal Pressure – 2,600KN
Air Capacity – 4L/jog
Air Pressure – 0.55Mpa
Lubricant Oil Capacity – 1000L, 1 tank type
Coolant Oil Capacity – 1000L, 1 tank type
Transfer Method – Lever knuckle-type open chuck, spring chuck (for nuts)
Coolant Motor Horse Power – 0.75kw, 4p, 208V, 60Hz
Lubricant Oil Motor Horse Power – 0.75kw, 4p, 208V, 60Hz / 0.4kw, 4p, 208V, 60Hz
Chuck (Clamp) Ascension/Descension Motor Horse Power – 0.75kw, 4p, 208V, 60Hz

Manufactured in 2014
Excellent Condition

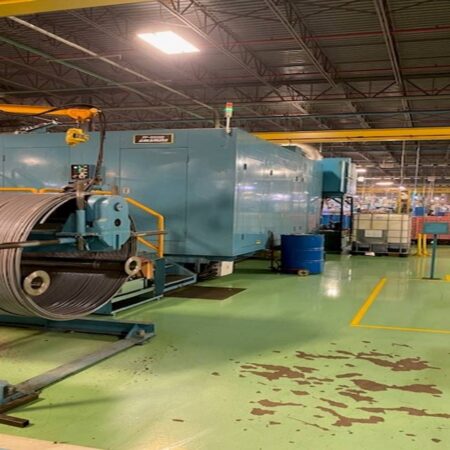

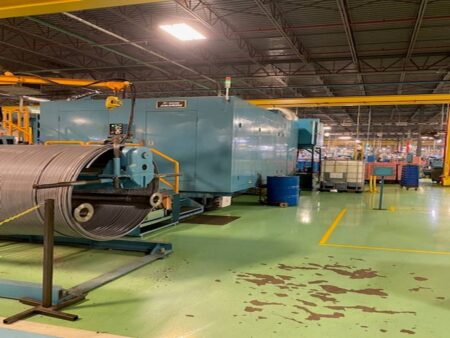

Comes with Wire Straightener

Straightener Name/Model – MWR-60NS-Type Straightener with a wire table

Wire Diameter – 13.3 to 20.2mm, max 27mm
* If the tensile strength is over 500 N/mm2, do not use the max. diameter 27

Motor Horse Power – 2.2kw, 4p
No. of Rolls – 5 vertical, 4 horizontal, V groove/slot
Main Drum – Intermittent Rotary Type (twin timer)
Feed Speed –
Coil Load Weight – For 2 tons
Equipment Weight – 2,800kg
