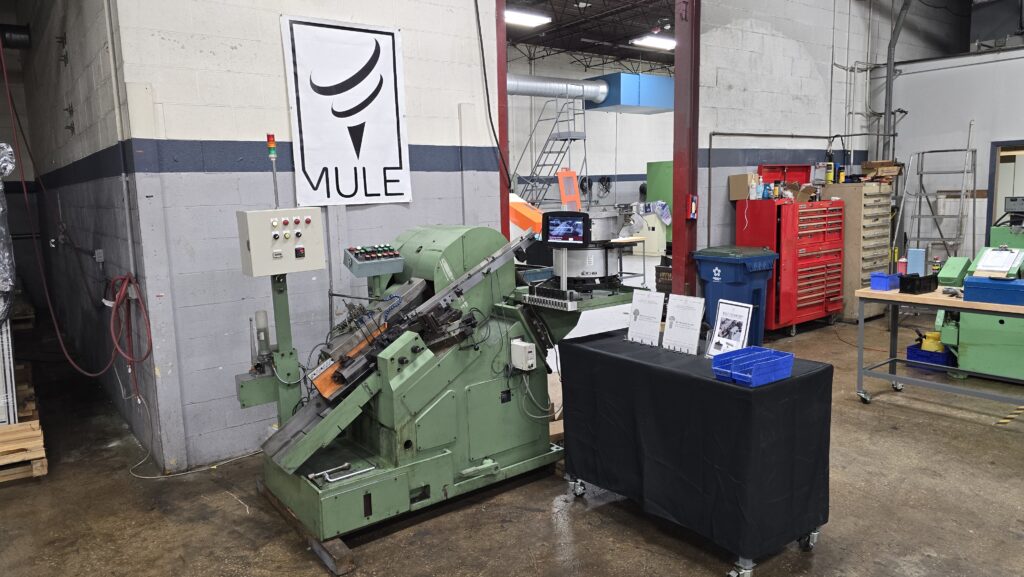

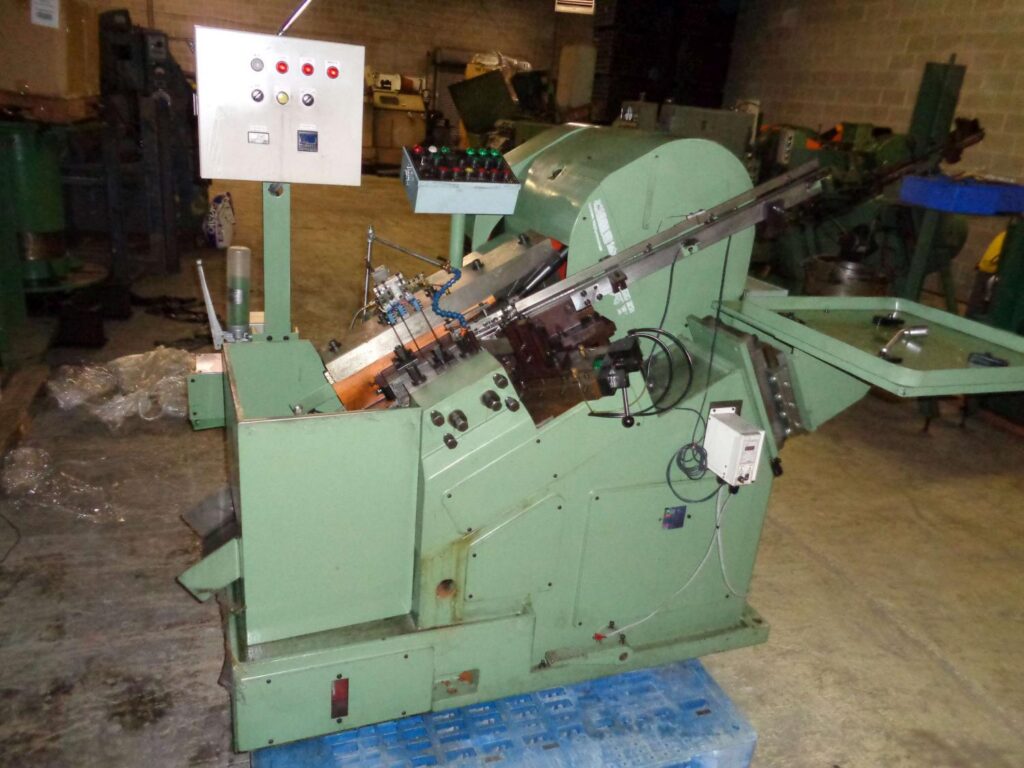

3/8″ Sanmei THI-10R #20 Flat Die Thread Roller w/Mule Rapid Setup Technology
Description
M10 max thread size
75mm max length of parts
40mm max length of threads
35mm max length of collar under head
PPM 100-200
340mm stroke
32 liters of coolant
7.5kW power
Equipped with carbide lined ram slides
Includes new vibratory bowl
Runup / Fault Detection Counter System
Equipped with:

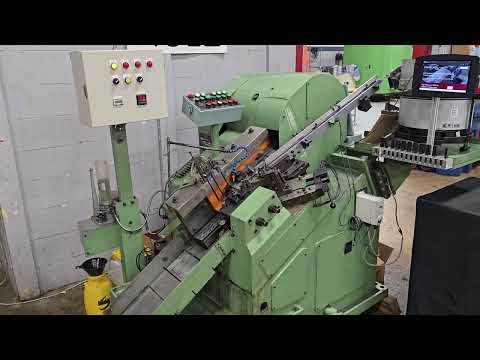

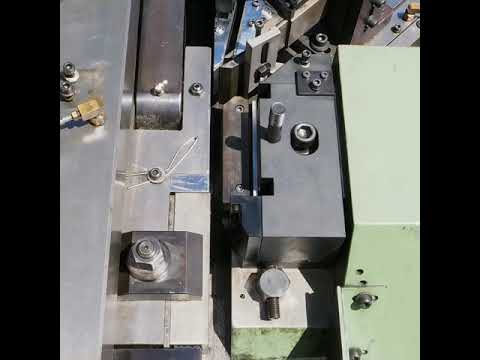

Mule Rapid Setup Retrofit Kit – makes setup between jobs a breeze with instant repeatable results and result tracking. For more information check out the video in the gallery for this machine.
Die Pocket Specs
Moving – 170mm long x 40mm thick x 80.26mm tall
Stationary – 135mm long x 40mm thick x 75.30mm tall
Actual Die Specs
Moving – 150mm x 40mm x 40mm tall
Stationary x 134.87mm x 40mm x 40mm tall
Comes with bowl and guarding on pallet #82-2
Additional Information
| Main Body Dimensions | 72"L × 60"W |
| Main Body Weight | 5400 lbs |
Accessories
| Feeder Bowl | 24"L × 24"W × 30"H | 350 lbs |
