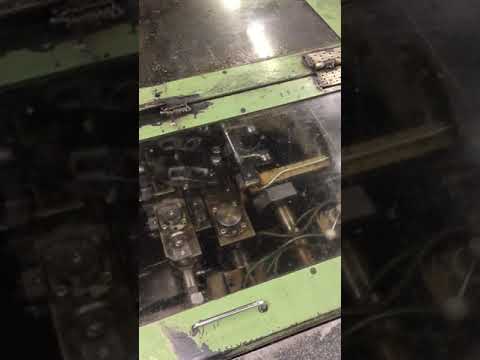

22mm Jern Yao JNP19B5S Parts Former
Description
CUT-OFF DIA. MAX. (mm) 22
CUT-OFF LENGTH MAX. (mm) 11~70
KICK-OUT LENGTH MAX. (mm) 100 (50)
P.K.O. LENGTH MAX. (mm) 20
CUT-OFF QUILL (DxL) (mm) 70×75
MAIN DIE HOLE (DxL) (mm) 90×140
DIES PITCH (mm) 111
PUNCH HOLE (DxL) (mm) 65×130
RAM STROKE (mm) 176
FORGING POWER (ton) 185
OPEN UPSET DIA. (mm) 27
MAX. OUTPUT (pcs/minute) 160
MAIN MOTOR (hp) 50
Monitor not included
Capable of rotational transfer and timed fingers
Additional Information
| Assembled Dimensions | 225"L × 114"W × 90"H |
| Main Body Weight | 60000 lbs |
Accessories
| Coil Stand | 72"L × 72"W × 87"H | 450 lbs |
| Operator Stairs | 103"L × 48"W × 81"H | 390 lbs |
| Cover w/Misc | 48"L × 45"W × 14"H | 200 lbs |
| Air Filtration Unit | 72"L × 66"W × 36"H | 335 lbs |
| Chip Conveyor | 84"L × 42"W × 61"H | 280 lbs |
| Small Cabinet | 40"L × 20"W × 36"H | 90 lbs |
| Feeder / Straightener | 62"L × 26"W × 61"H | 560 lbs |
| Electrical Control Cabinet | 67"L × 21"W × 80"H | 340 lbs |
| Pump | 29"L × 20"W × 44"H | 250 lbs |
| Tank w/Misc | 96"L × 48"W × 24"H | 650 lbs |
