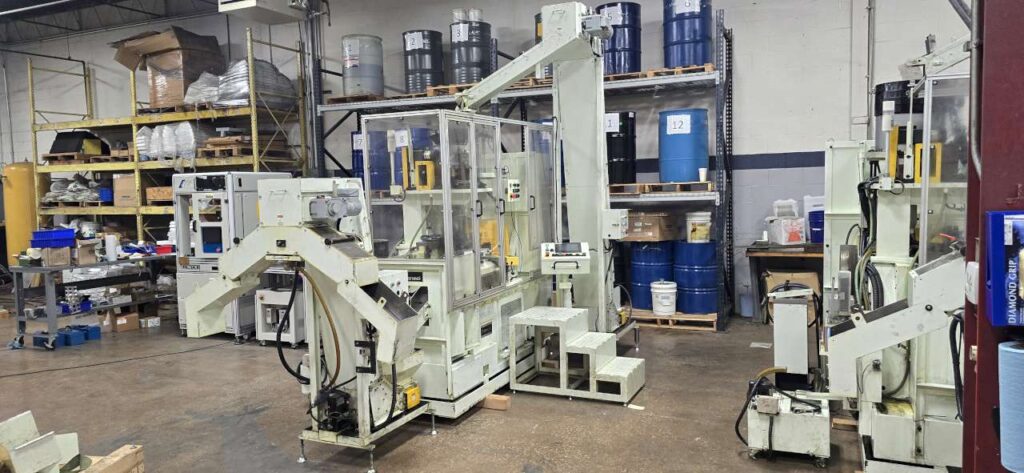

Sanmei THI-10FR Thread Roller w/SBT Stud Feeding Unit – 2 of 2
Description
Max Diameter – M10
Max Thread Length – 40mm
Max Rollable UHL – 75mm
Speed – 100-200 PPM
Inverter
Die Dimensions
135/150 x 40W x 40H mm
136/180 x 38/40 x 75H mm
Stroke 340mm
Starter style – circular cam
Pitch alignment – turnbuckle equipped
Vibratory Feeder – 500mm
Electrics – 480v 60HZ
Additional Information
| Main Body Dimensions | 96"L × 66"W × 91"H |
| Main Body Weight | 5500 lbs |
Accessories
| Electrical Cabinet | — | 750 lbs |
| Loading Conveyor | — | 1000 lbs |
| Exit Conveyor | — | 600 lbs |
| Magnetic Oil Filtration Unit | — | 175 lbs |
| Auxillary Oil Tank | — | 75 lbs |
| Operator Stairs | — | 200 lbs |
| Operator Platform | — | 45 lbs |
