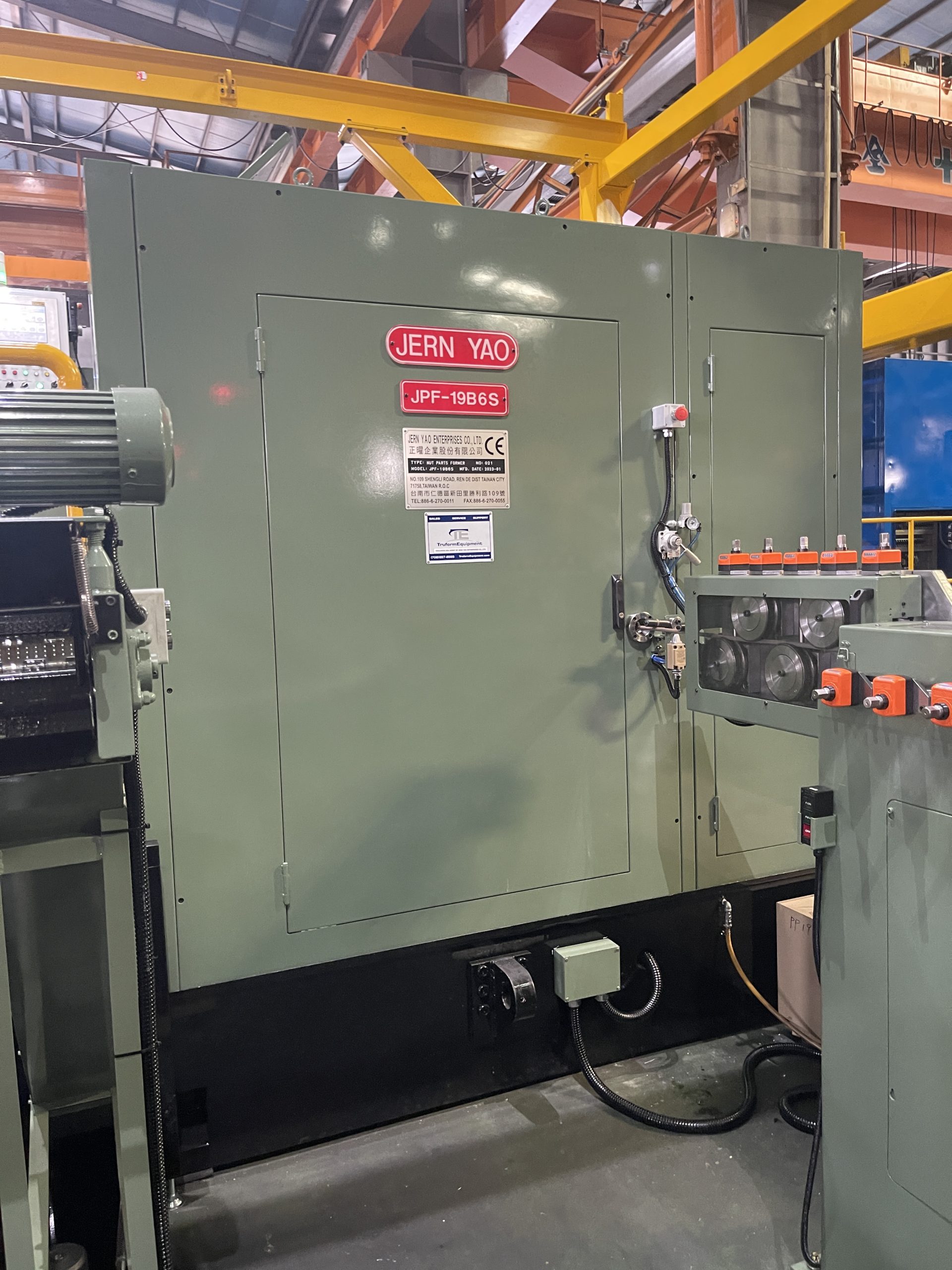

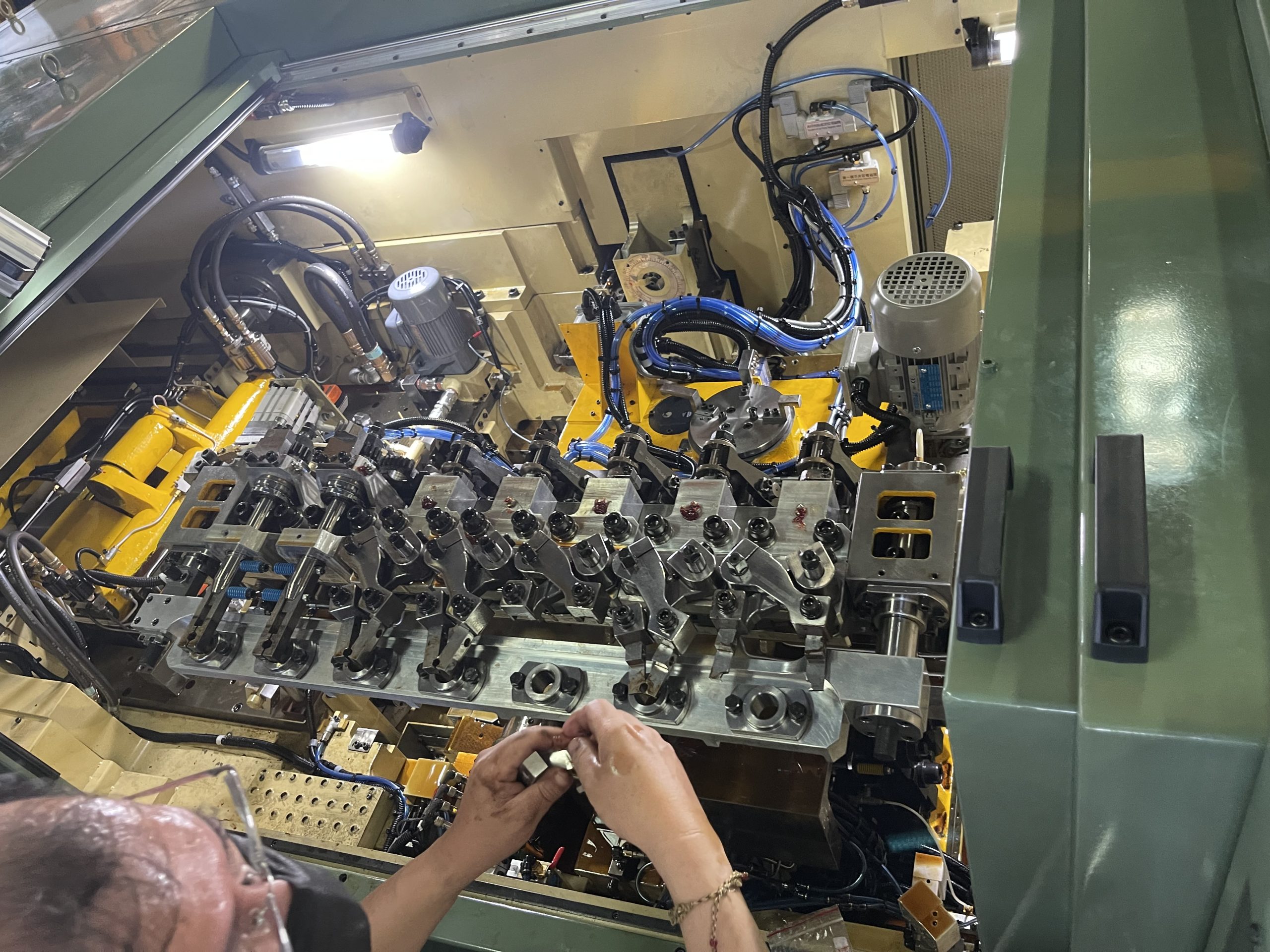

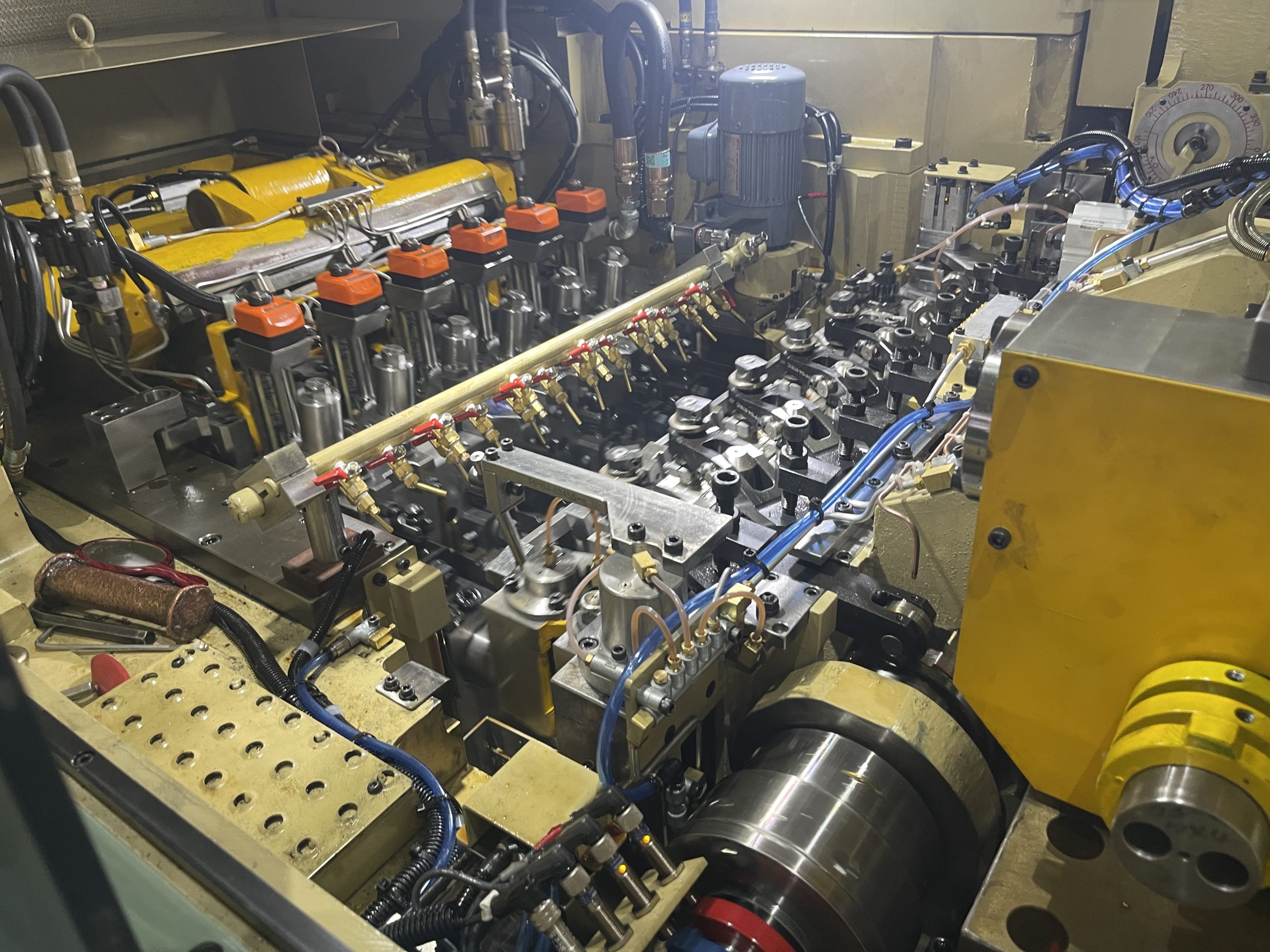

Jern Yao – JPF-19B6S Parts Former (New 2023)

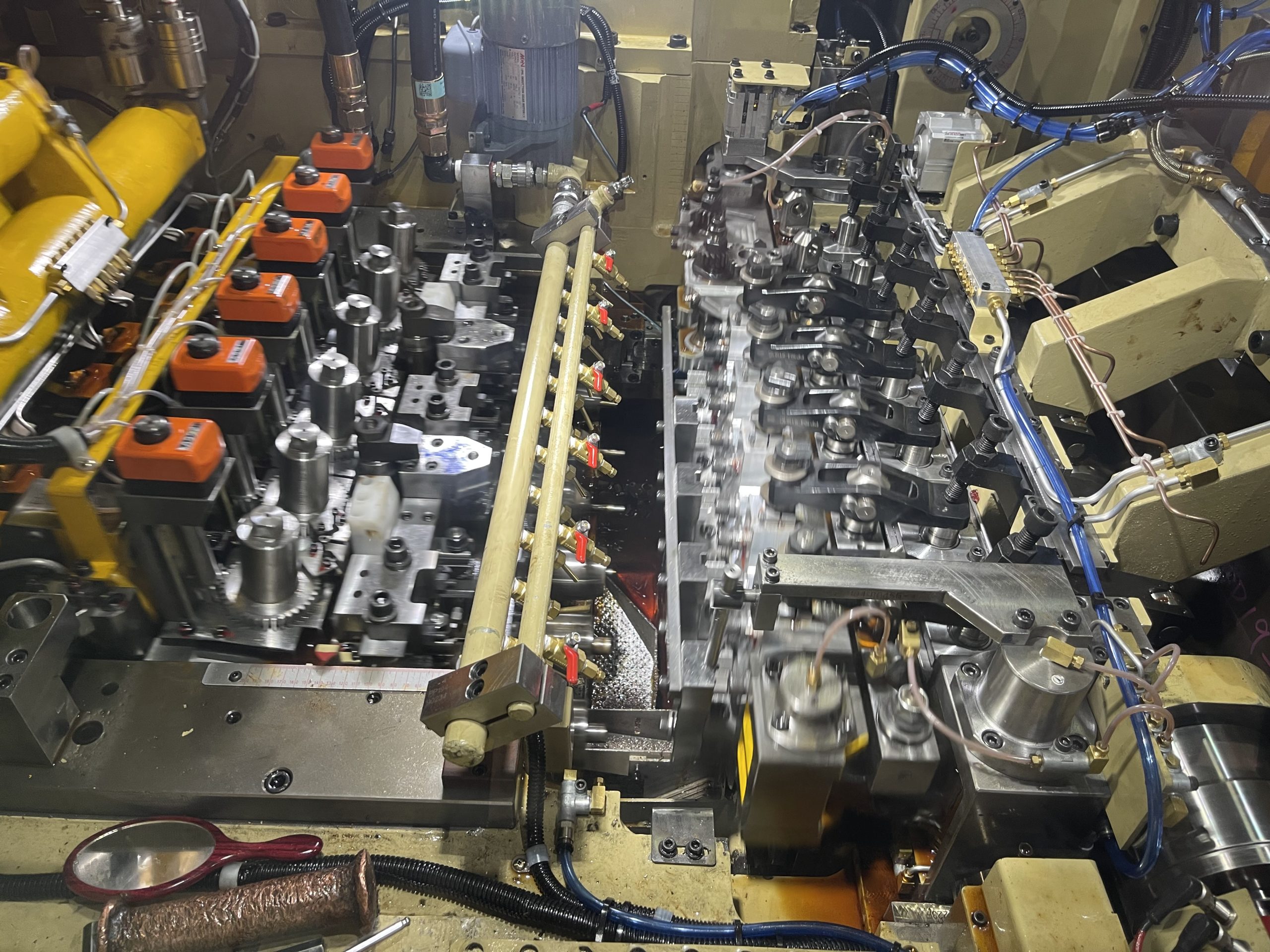

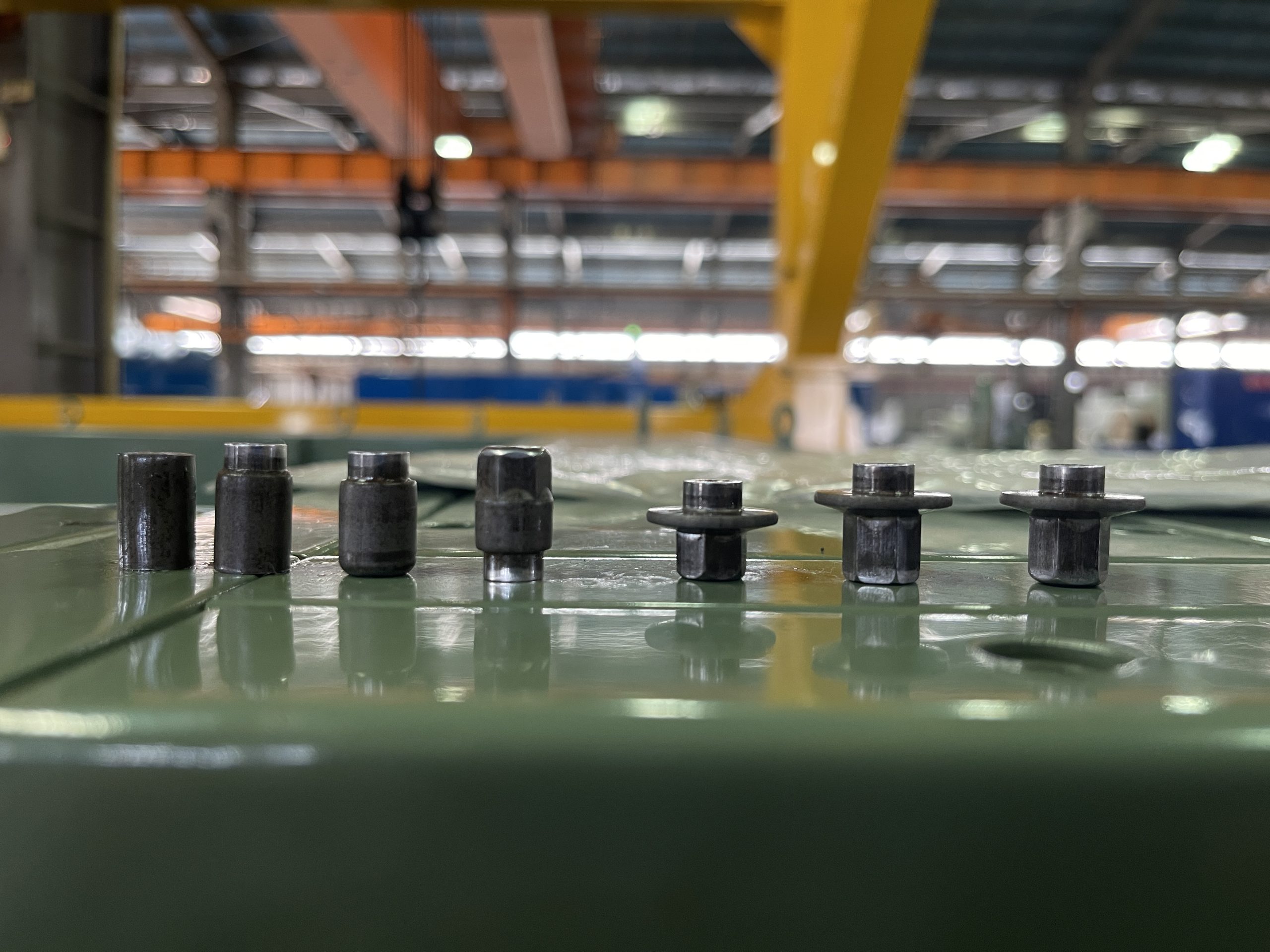

No. of Forging Stations 6
Cut-Off Dia Max. (mm) 21
Cut-Off Length Max. (mm) 10.5-40
Kick-Out Length Max. (mm) 58 (35)
PKO Length Max. (mm) 19
Cut-Off Quill (Dia x Length) 65×75

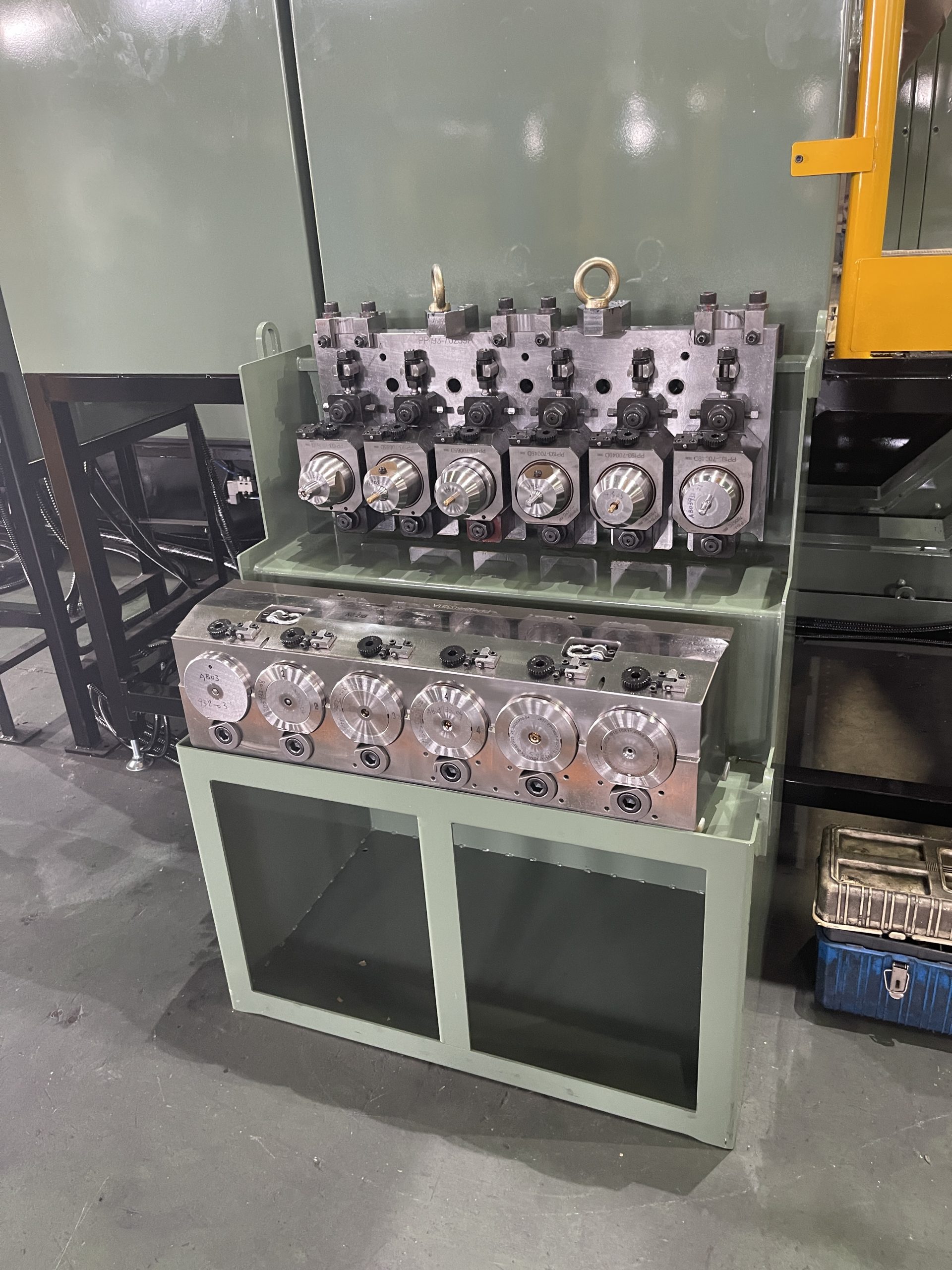

Main Die Hole (Dia x Length) 100×140
Dies Pitch (mm) 111
Punch Hole (Dia x Length) (mm) 70×155.5
Ram Stroke (mm) 165
Forging Power (ton) 175
Open Upset Diameter (mm) 28
Max. Output (Pcs/Min) 160
Main Motor (hp) 50
Approx. Weight (ton) 29

Includes

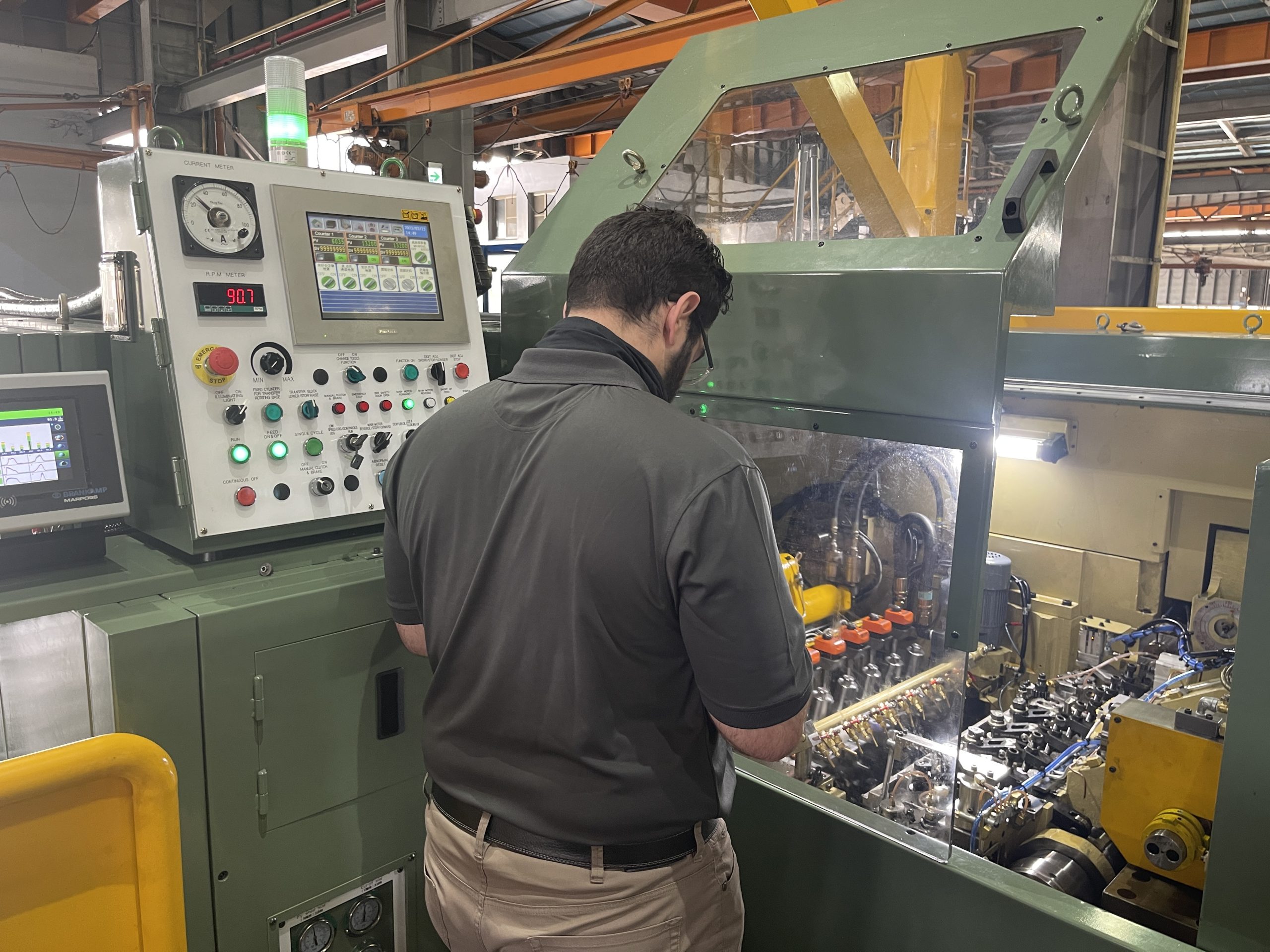

1. 1 unit of electrical control cabinet with PLC

2. 1 unit of pneumatic disc brake system

3. 1 unit of lubricant / coolant oil tank

4. 1 unit of oil mist exhaust (dimensions provided by buyer)

5. 1 set of hand tools

6. 1 unit of box type wire straightener with wire turntable

7. Standard spare parts

8. 1 unit of operator platform

9. 1 book of machine operation manual depicting:

   • Drawing of spare parts

   • Machine foundation drawing

   • Electrical drawing

10. 1 year parts / service warranty through Truform Equipment

Safety Detection System

• Air pressure shortage detector

• Short feed detector

• Material end detector

• Circuit abnormal detector

• K.O. and P.K.O. safety pin breakage detector

• Motor overload detector (including lubrication, coolant, and fan motors)

• Lubricant oil shortage detector

• Air clutch abnormal detector

• Manual air-clutch

• Inverter abnormal detector

• Force monitor abnormal detector

• Transfer block floating detector
